From Postgres to Riak

a success story

The journey from relational
database to Riak

Created by Johan Sommerfeld / @s2hc

/me

  • Electrical M.Sc with focus on signal theory
  • Background in both operations and development
  • Manic about availability, scalability and automation ...
  • ... modular and distributed systems
  • Founded S2HC Sweden in 2010

/client

  • Founded in 1981
  • Building hardware and software for measurement systems,
    used in big constructions project around the world
  • Early adopters of remote measuring

The old setup

  • PC program
  • Project management
  • Hardware management
  • Reports (pdf, txt)

The new system

An online, multitenant, management and reporting system

Challenges / requirements

  • Sensor data
  • Chunks
  • Unpredictable amount
  • Unpredictable delivery (time) to the backend
  • Multitenant
  • High availability
  • Scale

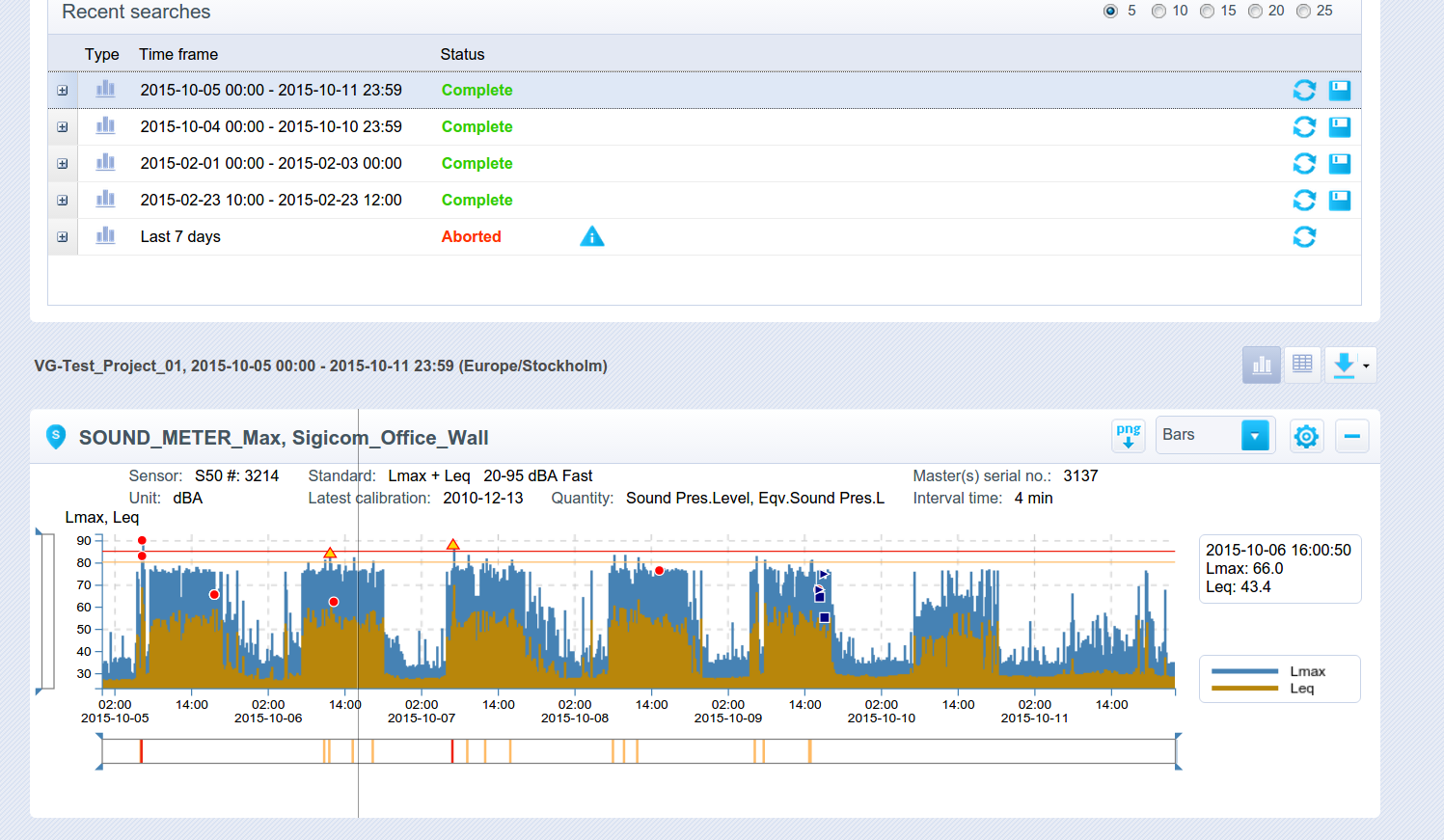

Usage: overview

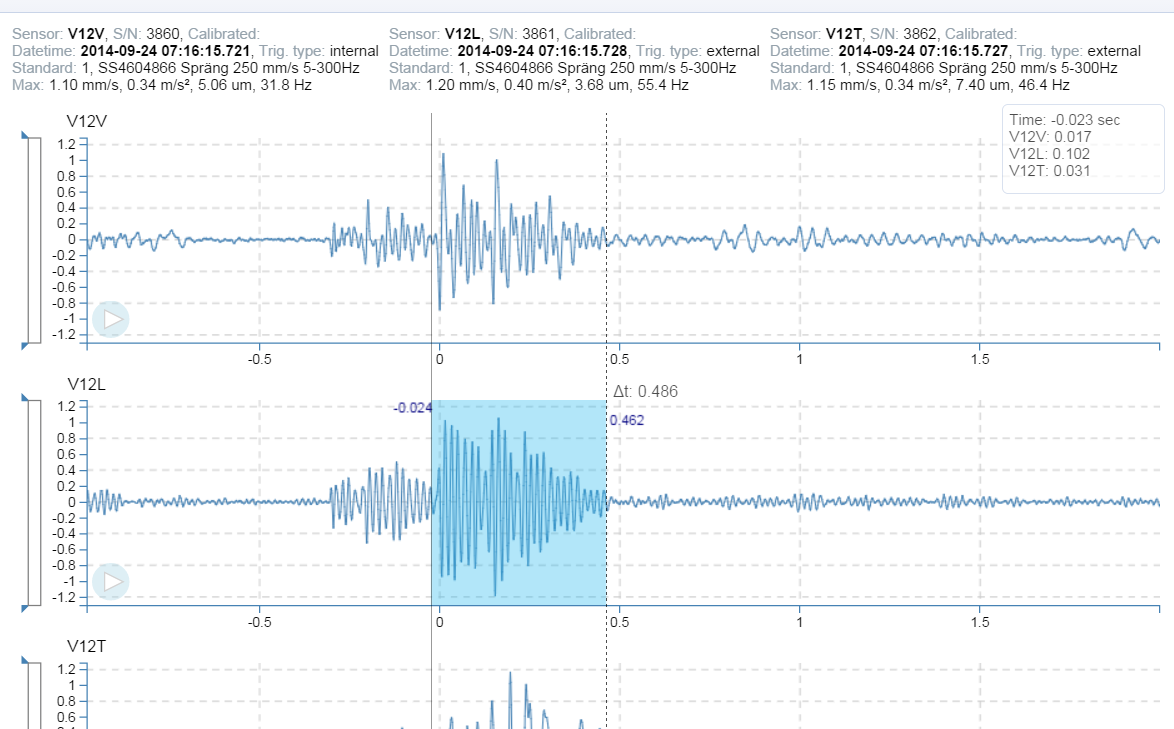

Usage: details

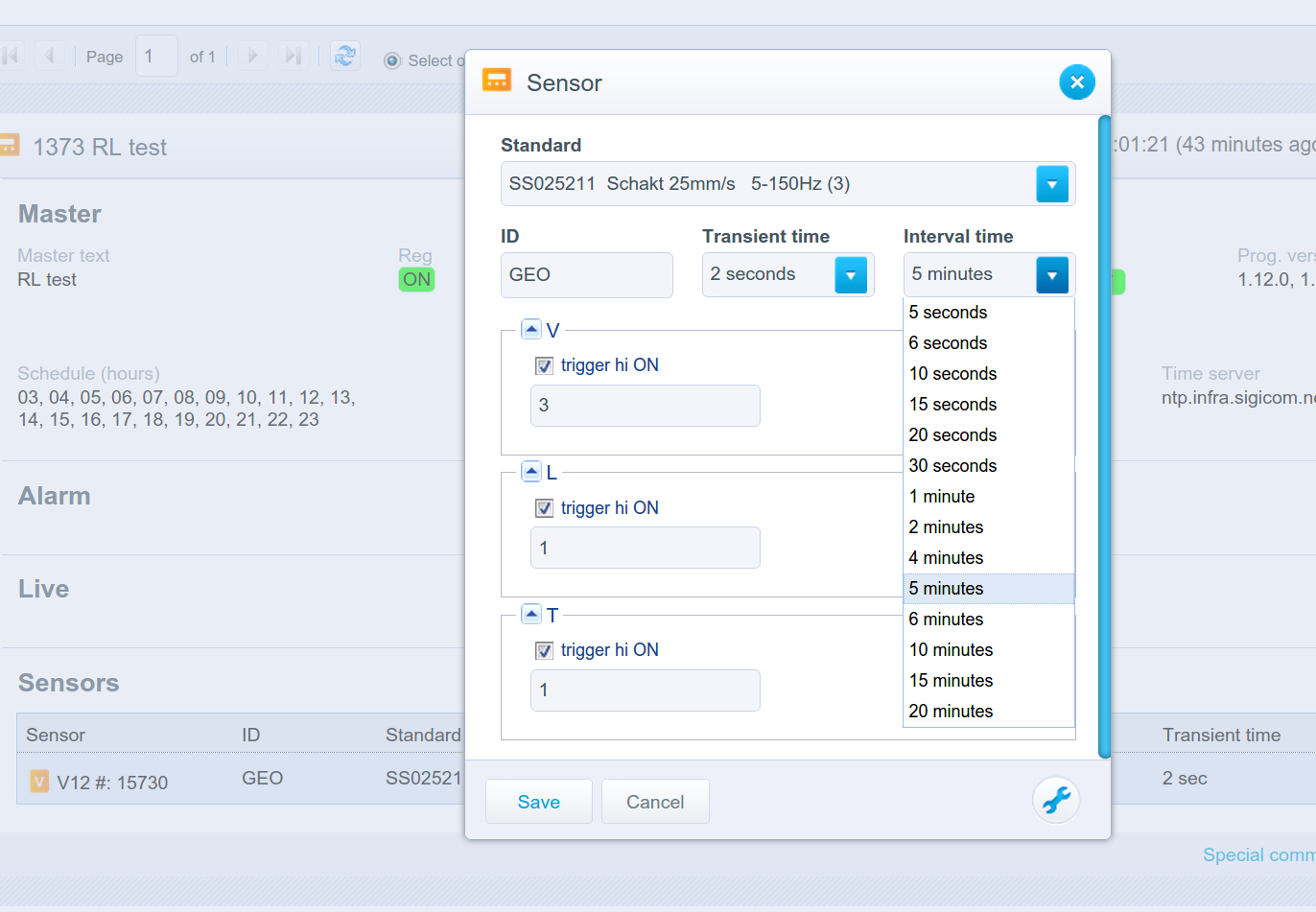

Usage: status / control

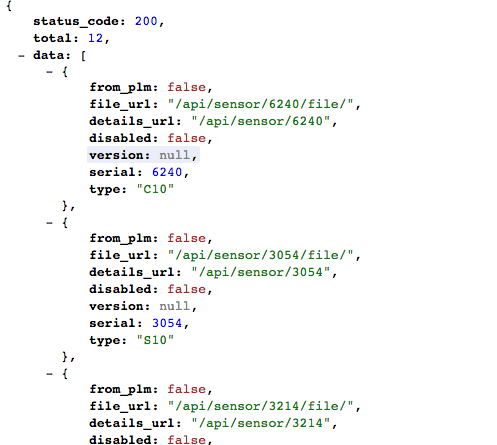

Usage: integration

Basic architecture

Reducing SPOF

overview

How hard can it be?

Problems

  • Single point of failure
  • Scaling
  • Resource sharing

Problems | measurements

Solutions

  • Big servers
  • Sharding
  • SAN
  • NoSQL (cassandra, mongodb, riak) ... winner!

Big servers

  • Lots of db black magic optimization
  • No need to rewrite logic
  • Limited scaling
  • No HA

Sharding

  • New logic needed
  • Good scalability (if done right)
  • No HA

SAN

  • Only scales storage
  • Good redundancy on data

NoSQL

  • Lots of new logic
  • A bit uncomfortable (at first)
  • HA, hopefully
  • Scales, hopefully
  • Super fast, hopefully

NoSQL, the showdown

As a small company, we didn't have the luxury of creating a full stack prototype for each database. Settled for theory, concepts and ... gut feeling

  • Feature set, ease from relational database
  • Scaling
  • HA

Enter Riak

The ring / art of distribution

  • Consistent hash f(key) -> hash
  • Hash keyspace: 2 160
  • Vnodes: gets even amount of keyspace
  • Vnodes: power of 2 (... 8, 16, 32, 64, ... 1024)

The ring / art of distribution

  • vnodes: 32, nodes: 3
  • n = 3, vnode, vnode + 1, vnode + 2

NoSQL, the hype (getting started)

  • We have a pure relational data model!?
  • We have to have pagination!?
  • Think way outside your box

know your data

The data flow

Initial extraction design

  • user selects project, measuring points, and time span
  • prep, get serial numbers and make two types of queries
  • 1. query on chunks, getting meta data (unit, interval time etc), analyze step
  • 2. query on the data, data process step
  • sql: select ... where serial and range;

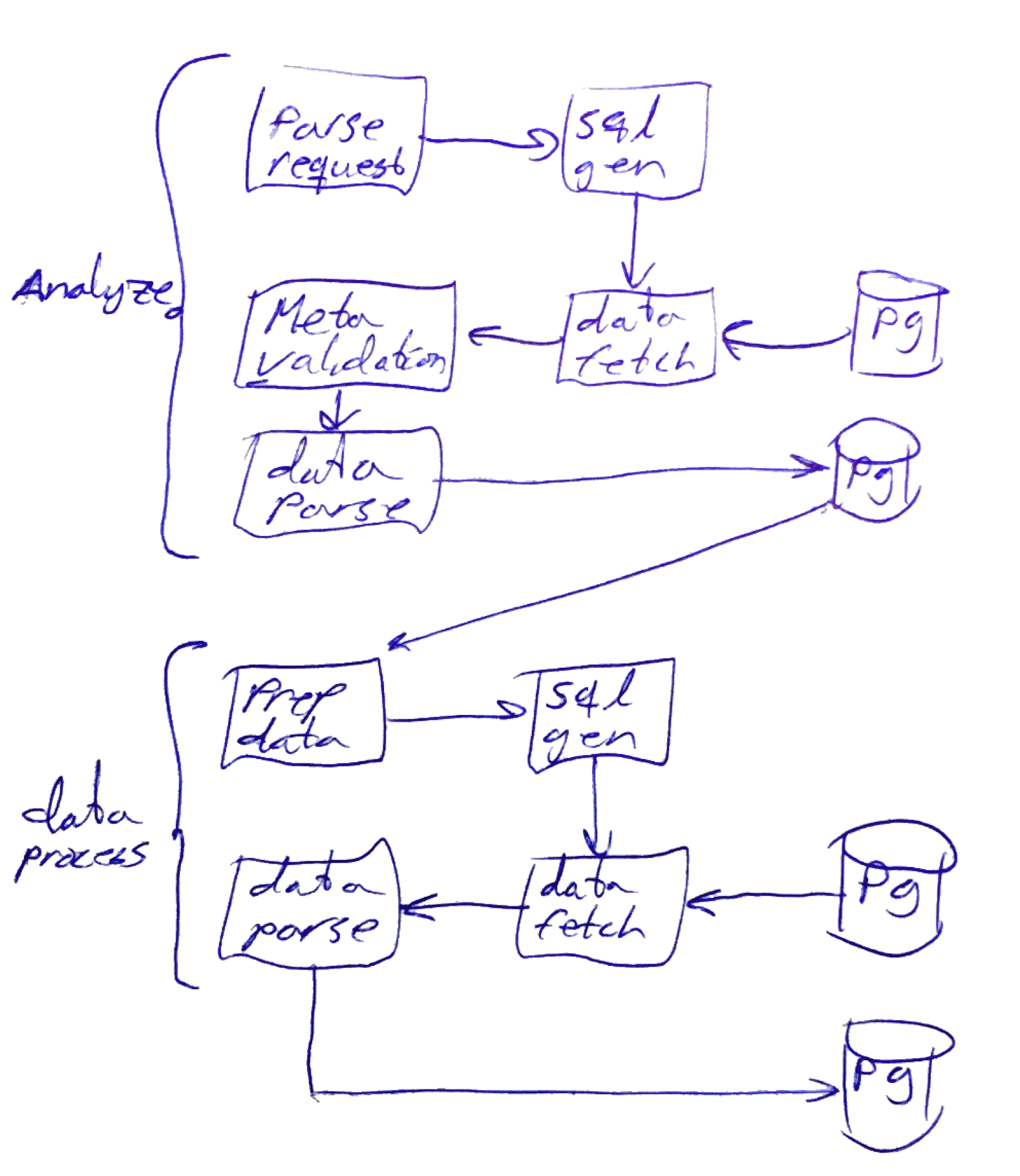

The data flow

Initial extraction design

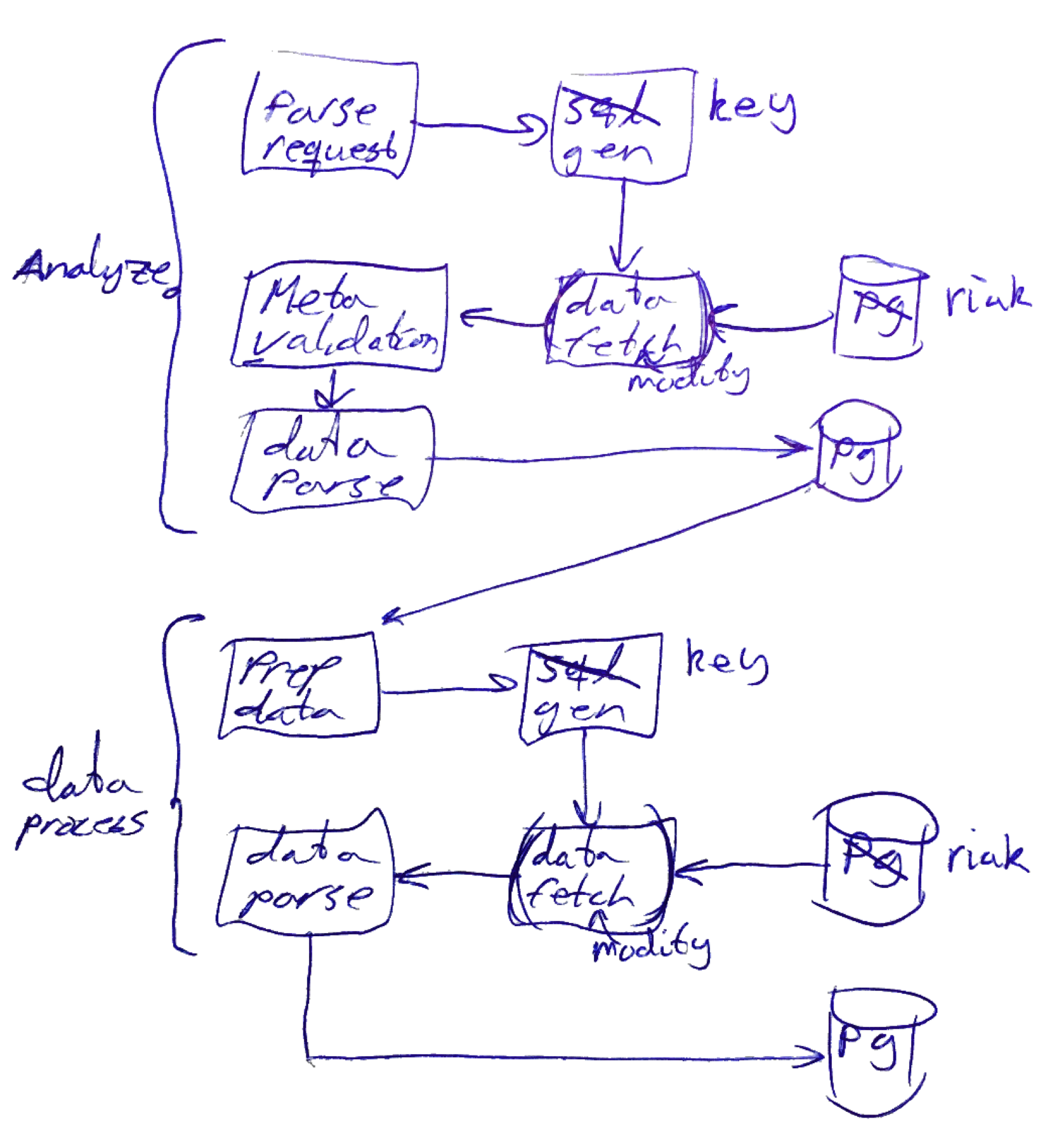

The data flow

first riak extraction design

The data flow

conditions

  • Incoming and outgoing requests separated
  • Immutable data
  • Deterministic in time



Gives

  • Known keys
  • Fast read, r=1

The data flow

Storage

  • Slice per day
  • 1s data
  • Store time, value and flags as json
  • Store as list instead of object

# 60 * 60 * 24 = 86 400
{"time": 16315353989120, "value": 24.54592940, "flags": 250}  # ~5.8M
[16315353989120, 24.54592940, 250]  # ~2.9M

The data flow

Storage part 2

  • Slice per hour <10s, else per day
  • Meta data (unit, interval time, etc) is sent less frequently
  • Store meta data in its own key + existing data keys

header_key = "{{company_id}}-{{serial}}-{{channel}}-2015-11-04
data_key = "{{company_id}}-{{serial}}-{{channel}}-" +\
           "{{interval_time}}-2015-11-04-00"

Good wants better

  • Now that we're fast, what else can we do
  • Searches of 20+ sensors with 5s between measurements and 1 year time span
  • Huge memory consumption when fetching all data
  • Not usable in average browser
    •
20 * (60 * 60  / 5) * 24 * 365 = 126 144 000  # data points
20 * 365 = 7 300  # meta keys to fetch from riak
20 * 24 * 365 = 175 200  # data keys to fetch from riak

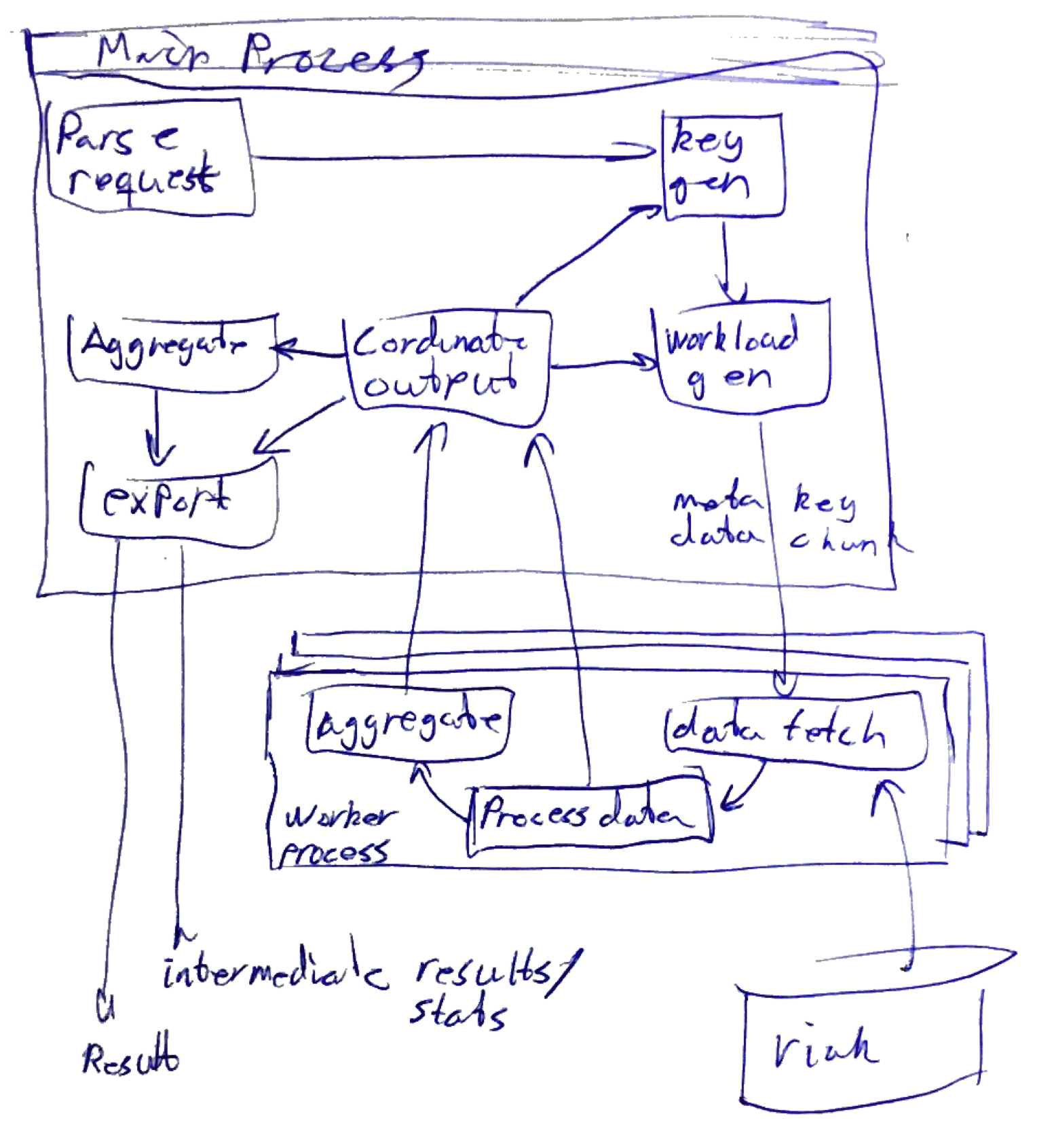

The data flow

New extraction

Develop and scale

PostgreSQL vs riak

  • Input vs output
  • Auto increment, unique key
  • Ranges, list resources
  • Updates, isolation

Riak and the system

  • Yesterday riak was a necessity
  • Today we have both data and user input in riak
  • Tomorrow we have written a notification system using riak_core and erlang. Maybe something for #RICON16
  • The day after that we have moved all critical parts into riak, at that point the PostgreSQL database will be <50MB

Questions / Thank you

Johan Sommerfeld / @s2hc

www.s2hc.com

Slides: www.s2hc.com/presentations/ricon15

Acknowledge: reveal.js   D3.js   Inspiring presentation I found on the web
